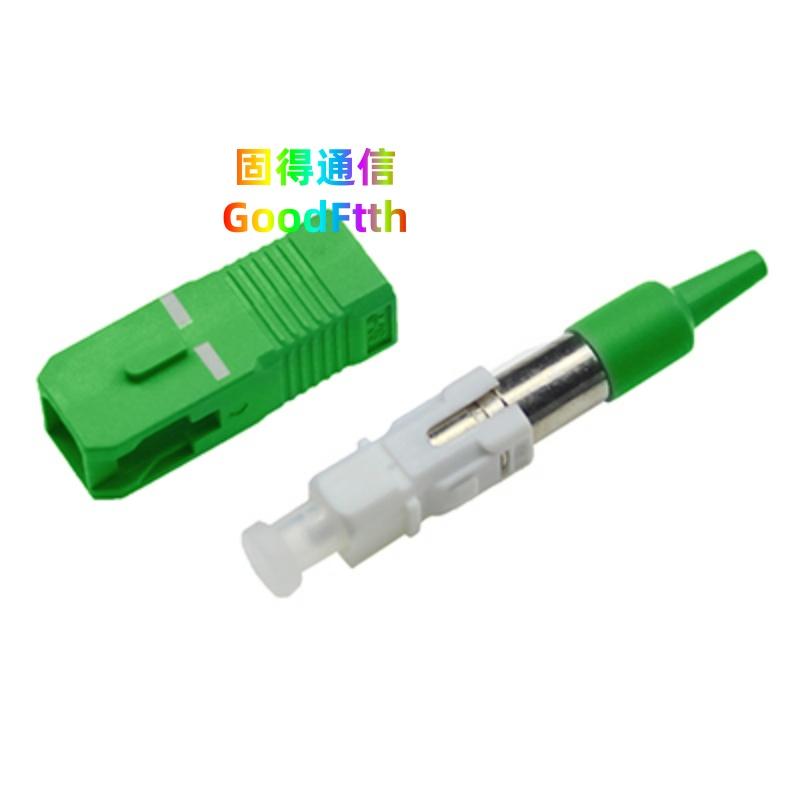

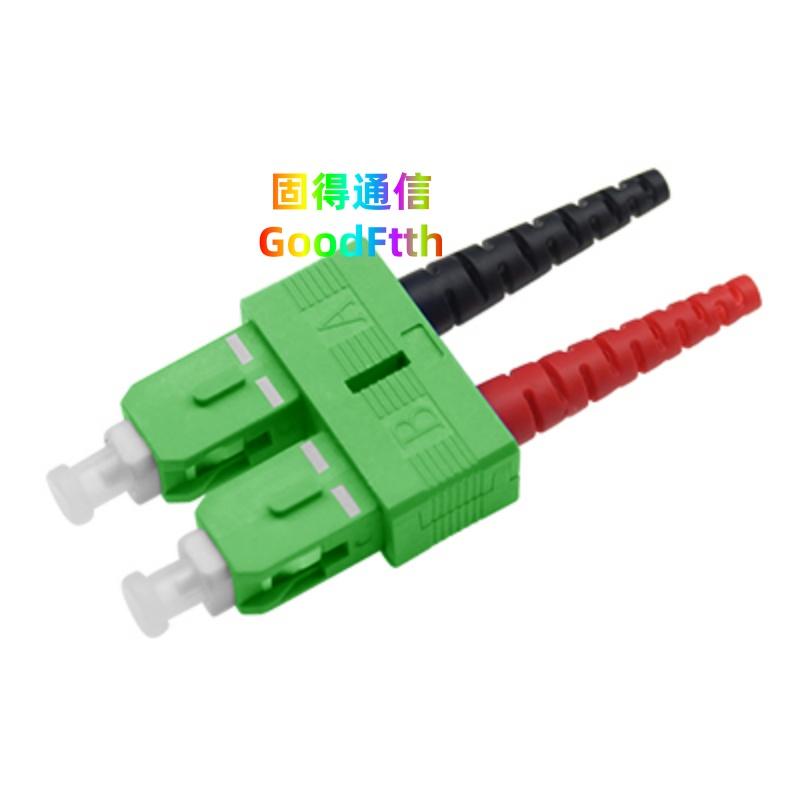

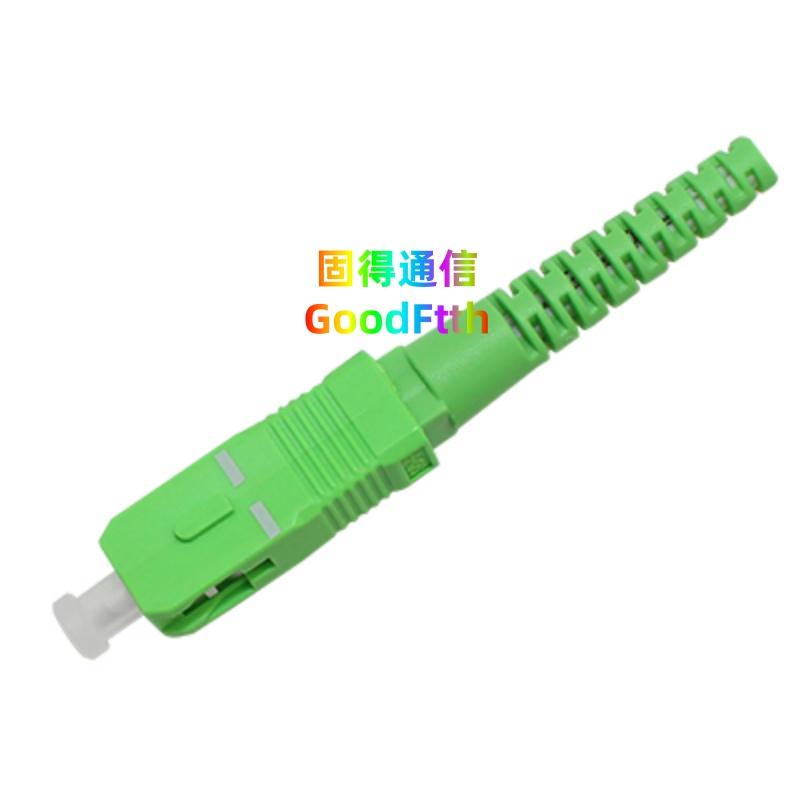

Fiber Optic Connector SC SM Mutimode Simplex Duplex 0.9mm 1.2mm 2mm 3mm
GoodFtth's SC connector series are available for 0.9mm,1.2mm,2mm or 3mm O.D.cables,in singlemode and multimode fiber types, including Multimode 62.5/125um and Multi-mode 50/125um. Custom color is accepted if the quantity is over 10,000pcs.
Application:
Telecommunication System
Testing Equipment
CATV System
LAN System
Feature:
Precision mechanical alignment
No epoxy required
Low Insertion Loss
Pre-embedded,factory-polished ferrule
Specification:
|
Item
|
SM
|
MM
|
|
Polish
|
UPC
|
APC
|
PC
|
|
Insertion Loss
|
Typical ≤0.2dB Maximum ≤0.3dB
|
≤0.25dB
|
|
Return Loss
|
≥50dB
|
≥65dB
|
≥35dB
|
|
Interchangeability
|
≤0.2dB
|
|
Repeatability
|
≤0.1dB
|
|
Durability
|
≤0.2dB (1000 times mating)
|
|
Tensile Strengh
|
> 10kg
|
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
|
Humidity
|
≤0.2dB (+25+65 93 R.H.100 hours)
|
