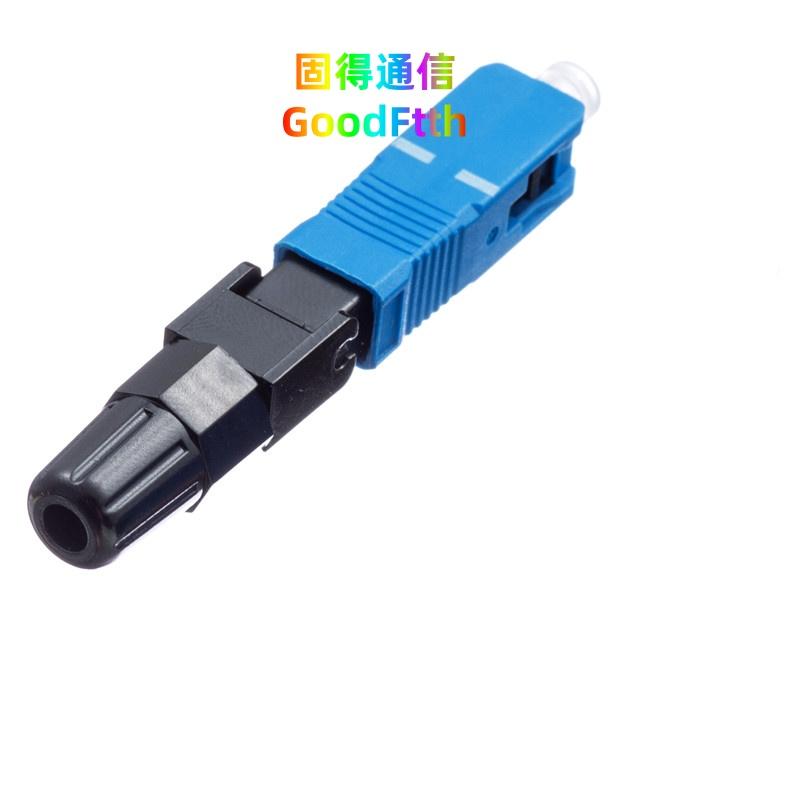

GoodFtth's sc fast connector series connectors are now catering for 250um to 900um diameter singlemode and multimode fiber types, including Multimode 62.5/125um and Multi-mode 50/125um. Your special requirement can be customized.
Application:
Telecommunication System
Testing Equipment
CATV System
LAN System
Feature:
Precision mechanical alignment
No epoxy required
Low Insertion Loss
Pre-embedded,factory-polished ferrule
Specification:
|
Item
|
SM
|
MM
|
|
Polish
|
UPC
|
APC
|
PC
|
|
Insertion Loss
|
Typical ≤0.2dB Maximum ≤0.3dB
|
≤0.25dB
|
|
Return Loss
|
≥50dB
|
≥65dB
|
≥35dB
|
|
Interchangeability
|
≤0.2dB
|
|
Repeatability
|
≤0.1dB
|
|
Durability
|
≤0.2dB (1000 times mating)
|
|
Tensile Strengh
|
> 10kg
|
|
Temperature
|
≤0.2dB (-40+85 sustain 100 hours)
|
|
Humidity
|
≤0.2dB (+25+65 93 R.H.100 hours)
|
