Shutter Adapter SC Coupler Simplex Duplex Adaptor with Cover

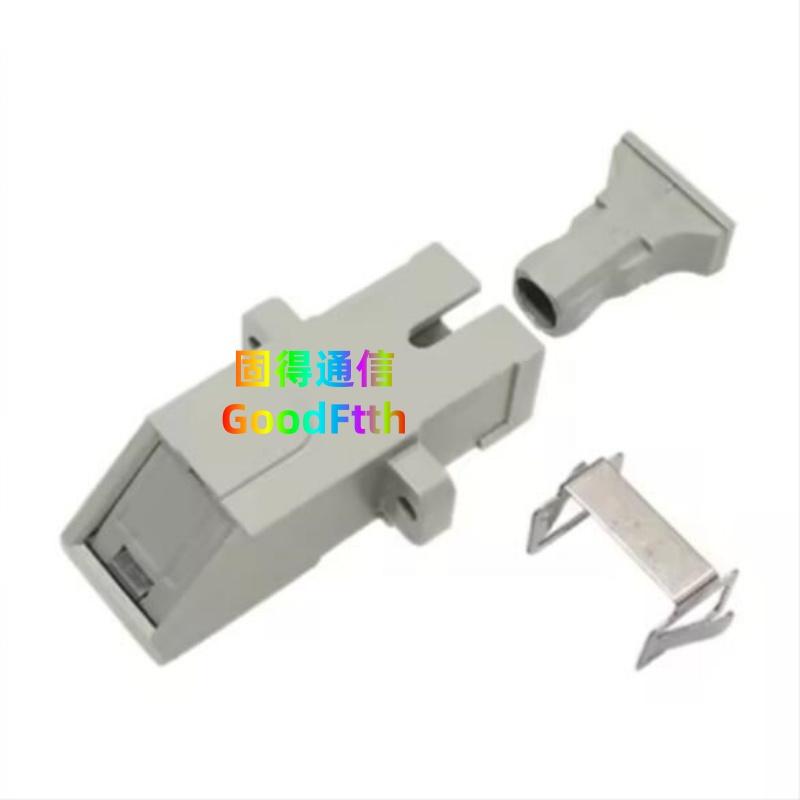

The use of a dust shutter adapter helps to ensure a dust-free connection.GoodFtth's dust shutter is placed over the end of an SC adapter.The shutter automatically opens when a plug is inserted and closes when the fiber port is removed, providing a dust-free connection. Unlike the regular fiber adapter, the shuttered adapter has a shutter mechanism to help prevent contaminants from entering the ferrule end face.All the materials are RoHS compliant and meet EIA/TIA standard.
Application:
LAN System
CATV System
Testing Equipment
Telecommunication System
Feature:
Low insertion loss
High precision alignment
Good repeatability and exchangeability
Available Ceramic or PB Sleeves
Specification:
|
Parameter
|
Unit
|
Shutter Adapter SC LC
|
|
PC
|
UPC
|
APC
|
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
|
Exchange ability
|
dB
|
≤0.2
|
|
Repeat ability
|
dB
|
≤0.2
|
|
Durability
|
Time
|
>1000
|
|
Operating Temperature
|
℃
|
-40~75
|
|
Storage Temperature
|
℃
|
-45~85
|
