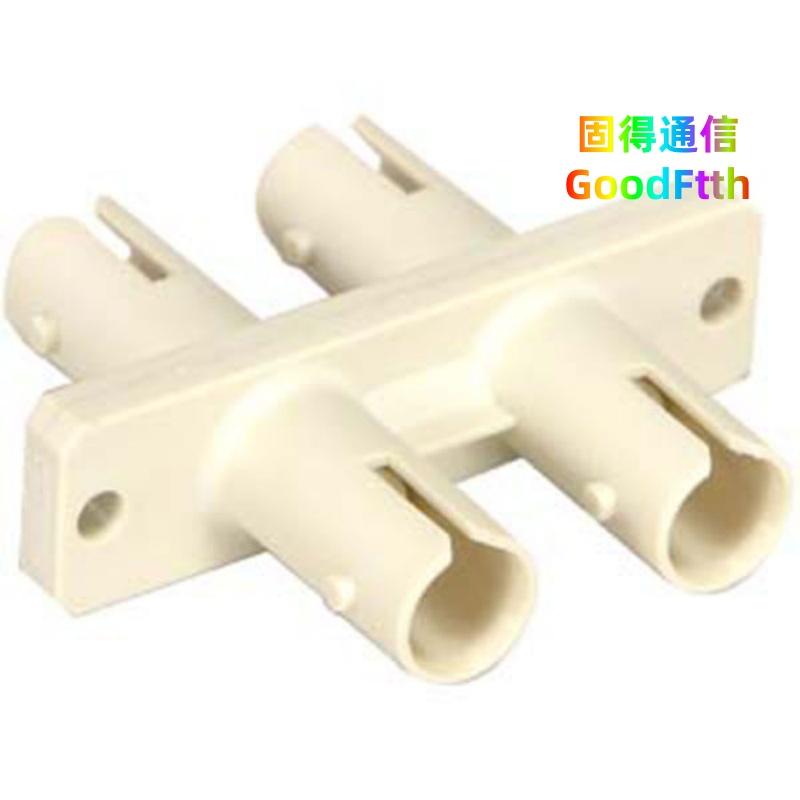

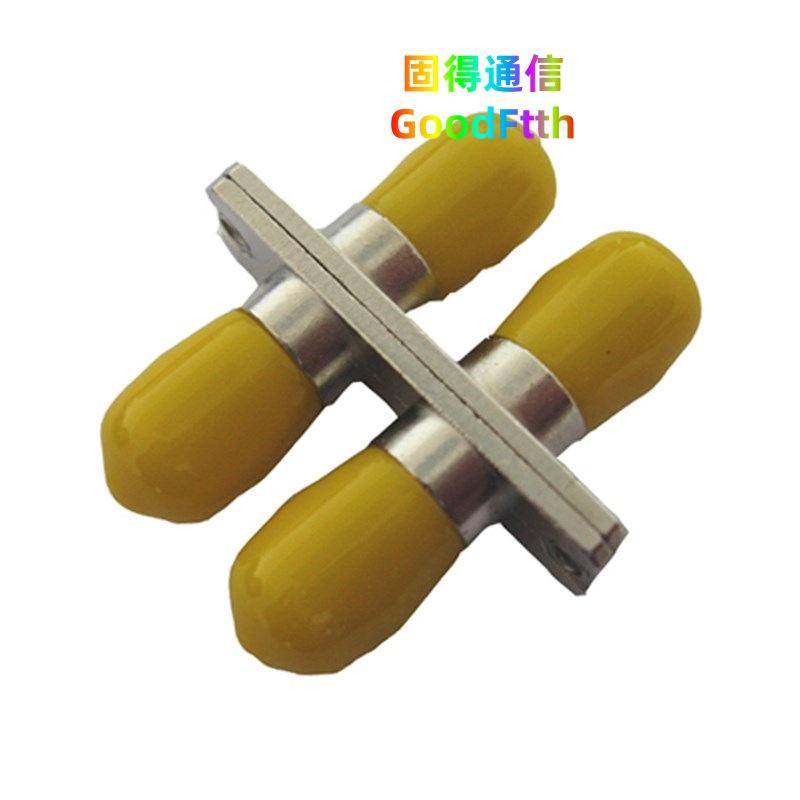

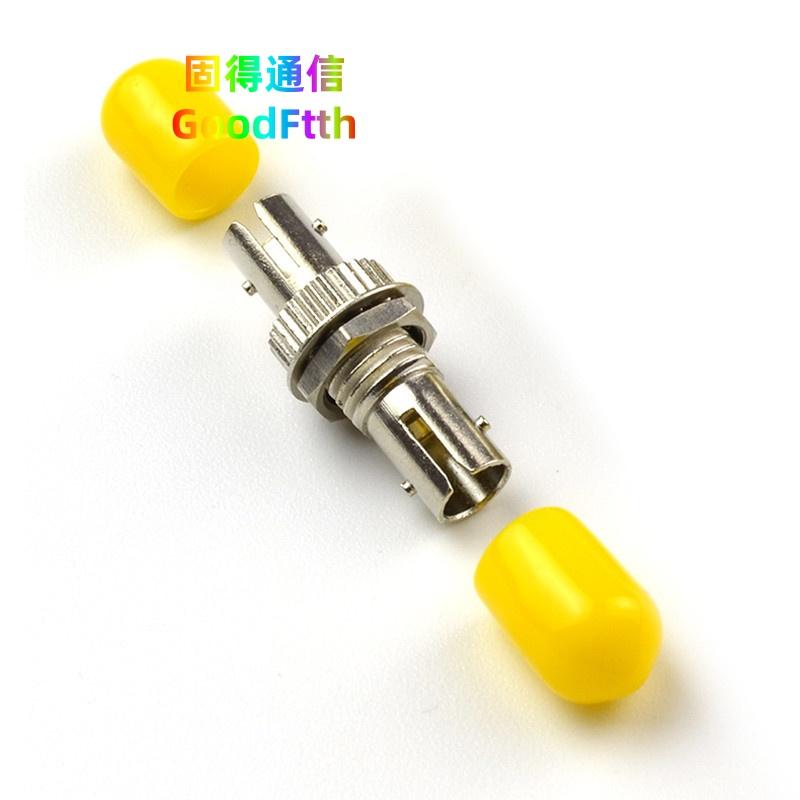

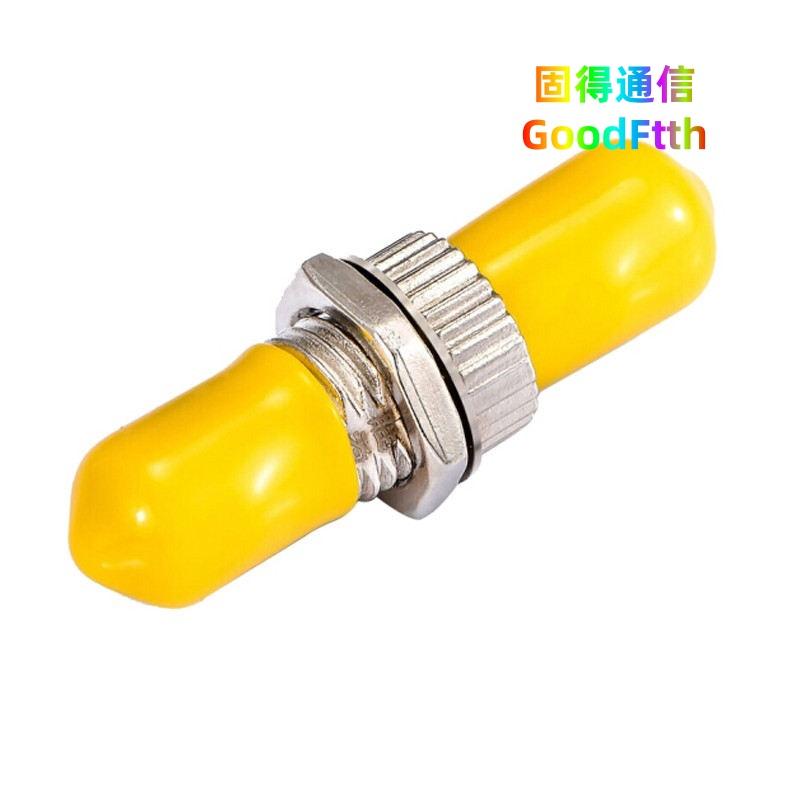

GoodFtth provides a variety of fiber adapter ST in Simplex and duplex with ceramic or phosphor bronze sleeves,the housing can be metal or plastic. Their materials meet the RoHS compliance and EIA/TIA standard.
Application:
LAN System
CATV System
Testing Equipment
Telecommunication System
Feature:
Low insertion loss
High precision alignment
Good repeatability and exchangeability
Available Ceramic or PB Sleeves
Specification:
|
Parameter
|
Unit
|
Fiber Adapter ST
|
|
PC
|
UPC
|
APC
|
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
|
Exchange ability
|
dB
|
≤0.2
|
|
Repeat ability
|
dB
|
≤0.2
|
|
Durability
|
Time
|
>1000
|
|
Operating Temperature
|
℃
|
-40~75
|
|
Storage Temperature
|
℃
|
-45~85
|
