Cassette PLC Splitters LGX Box GoodFtth 1X8 1X16 1X32 1X64 2X8 2X16 2X32 3X64
Model No.︰-
Brand Name︰-
Country of Origin︰China
Unit Price︰CNY ¥ 99 / pc
Minimum Order︰10 pc
Product Description
PLC (Planar Light Wave Circuit) Splitter is based on planar light wave circuit technology and precision aligning process, can dividea single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN .PLC Splitter is applied in FTTX deployments, PON networks,CATV links and optical signal distribution currently. GoodFtth's PLC Splitter offers superior optical performance, high stability and high reliability, meetvarious application requirements in different environments.
Application:
LAN System
CATV System
Testing Equipment
Telecommunication System
Feature:
Low PDL.
Low Insertion loss
Excellentuniformity
Goodrepeatability
Feature:
|
1×N Cassette PLC Splitter Specification |
||||||||||||
|
Port Configuration |
Ch |
1*2 |
1*4 |
1*8 |
1*16 |
1*32 |
1*64 |
|||||
|
Fiber Type |
SMF-28e, G652, G655, G657 (or Customized) |
|||||||||||
|
Operating Wavelength |
nm |
1260-1650 |
||||||||||
|
IL |
Typical(dB) |
≤4.3 |
≤7.6 |
≤10.7 |
≤14.0 |
≤17.3 |
≤20.6 |
|||||
|
UL |
dB |
≤1.0 |
≤1.4 |
≤1.5 |
≤2.0 |
≤2.5 |
≤2.5 |
|||||
|
PDL |
dB |
≤0.2 |
≤0.2 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.5 |
|||||
|
RL |
dB |
UPC≥50; APC≥55 |
||||||||||
|
Directivity |
dB |
≥55 |
||||||||||
|
Operating Temperature |
℃ |
-40~+85 |
||||||||||
|
Storage Temperature |
℃ |
-40~+85 |
||||||||||
|
Steel tube size |
mm |
60*7*4 |
60*7*4 |
60*7*4 |
60*12*4 |
80*20*6 |
100*40*6 |
|||||
|
ABS Size |
mm |
130*100*25 |
130*100*25 |
130*100*25 |
130*100*50 |
130*100*100 |
130*100*100 |
|||||
|
2×N Cassette PLC Splitter Specification |
||||||||||||
|
Port Configuration |
Ch |
/ |
/ |
/ |
2*16 |
2*32 |
2*64 |
|||||
|
Fiber Type |
SMF-28e, G652, G655, G657 (or Customized) |
|||||||||||
|
Operating Wavelength |
nm |
1260-1650 |
||||||||||
|
IL |
Typical (dB) |
/ |
/ |
/ |
≤14.3 |
≤17.6 |
≤20.9 |
|||||
|
UL |
dB |
/ |
/ |
/ |
≤2 |
≤2.5 |
≤2.5 |
|||||
|
PDL |
dB |
/ |
/ |
/ |
≤0.4 |
≤0.4 |
≤0.5 |
|||||
|
RL |
dB |
UPC≥50; APC≥55 |
||||||||||
|
Directivity |
dB |
≥55 |
||||||||||
|
Operating Temperature |
℃ |
-40~+85 |
||||||||||
|
Storage Temperature |
℃ |
-40~+85 |
||||||||||
|
Steel Tube Size |
mm |
/ |
/ |
/ |
60*12*4 |
80*20*6 |
100*40*6 |
|||||
|
ABS Size |
mm |
/ |
/ |
/ |
130*100*50 |
130*100*100 |
130*100*100 |
|||||
Payment Terms︰ Prepayment TT;Paypal;WU;L/C

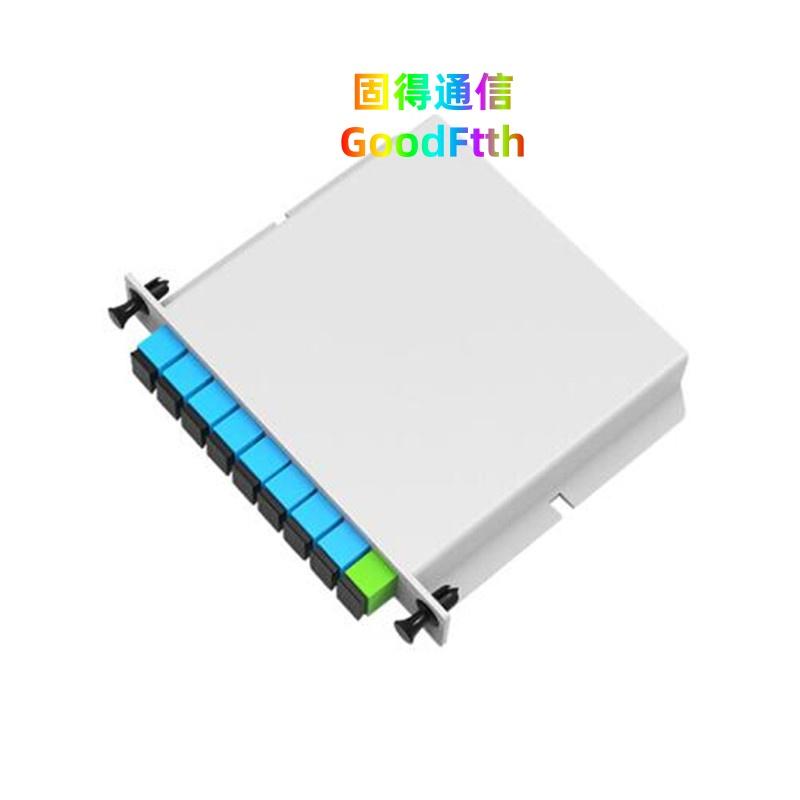

Product Image
