Product Description

GoodFtth provides a variety of SC fiber adapter in Simplex and duplex with ceramic or phosphor bronze sleeves, according to the practical need,flange or flangeless types are optional. Their materials meet the RoHS compliance and EIA/TIA standard.



Application:



LAN System

CATV System

Testing Equipment

Telecommunication System





Feature:

Low insertion loss

High precision alignment
Good repeatability and exchangeability

Available Ceramic or PB Sleeves



Specification:

Parameter	Unit	Fiber Adapter SC
		PC	UPC	APC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2
Exchange ability	dB	≤0.2
Repeat ability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	℃	-40~75
Storage Temperature	℃	-45~85



Payment Terms︰ Prepayment TT;Paypal;WU;L/C

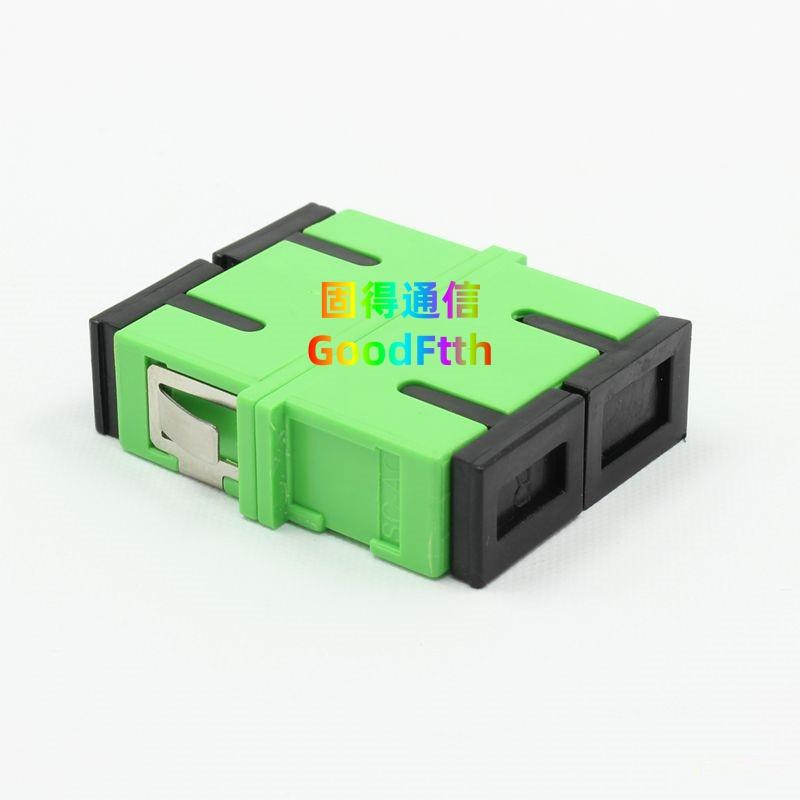

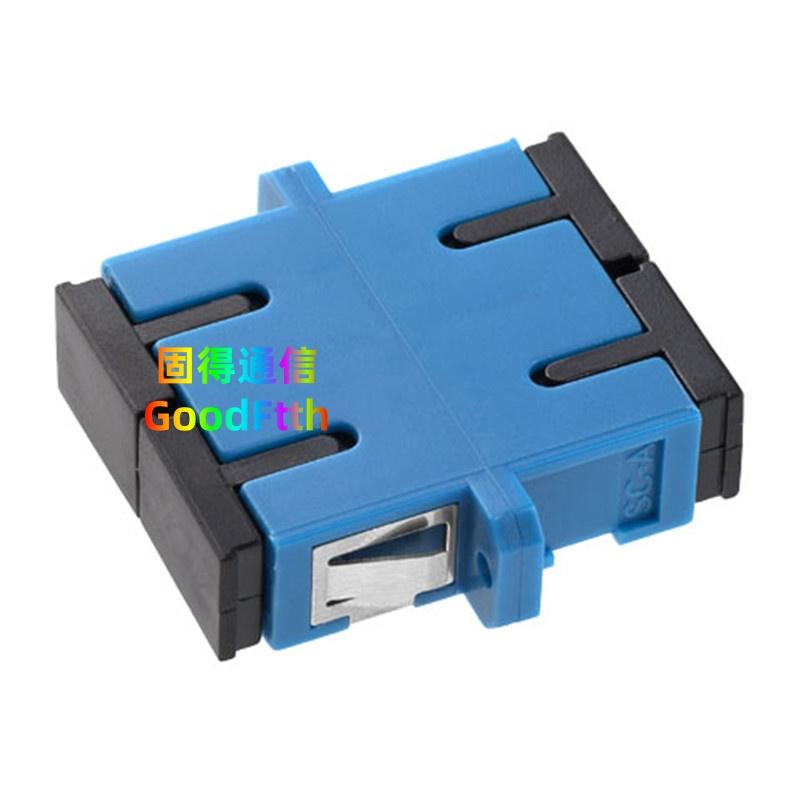

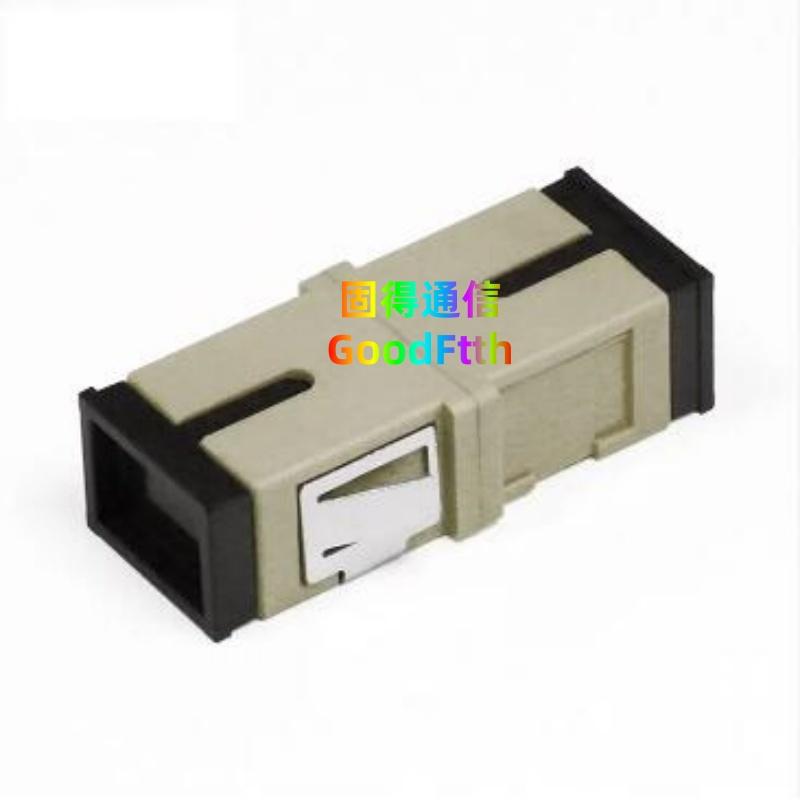

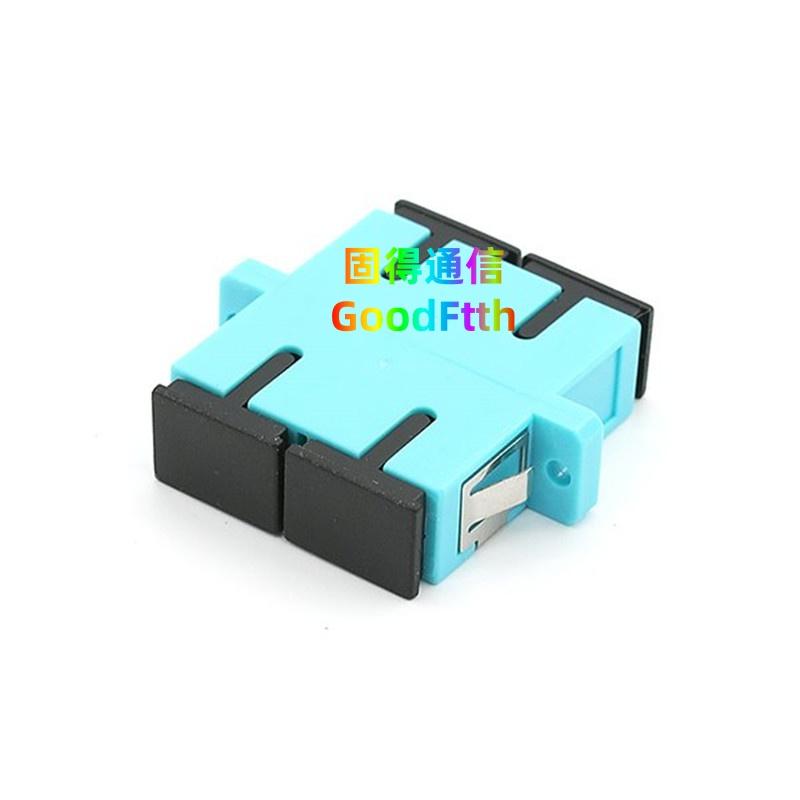

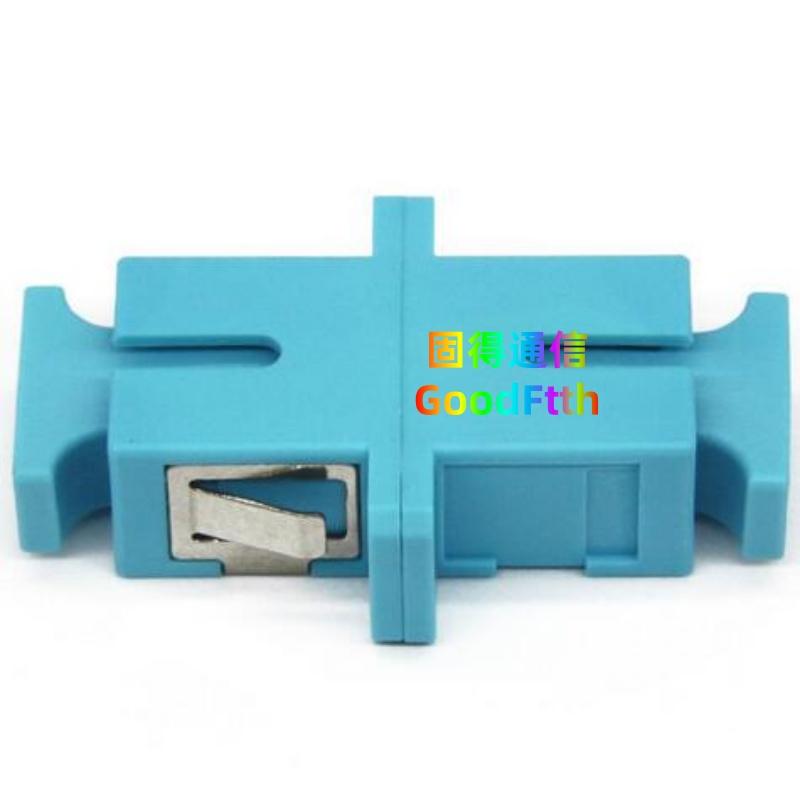

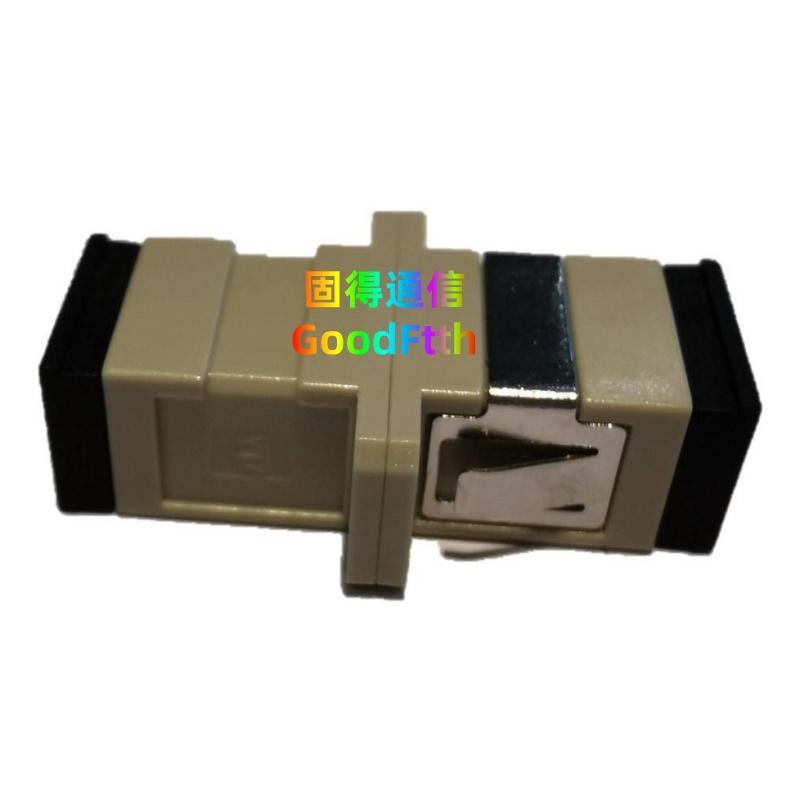

Product Image
